A sperm-sorting technology, refined across three decades.
MicroSort separates X- and Y-bearing sperm using validated flow cytometry — producing an enriched sample with reproducible, documented accuracy. Here's how the platform works, and how it deploys in your laboratory.
Methodology Summary
MicroSort uses a validated flow-cytometry process to separate X- and Y-bearing sperm based on DNA content differences. The methodology is published and peer-reviewed.
- Sample Preparation: Semen sample is liquefied and diluted to optimize cell sorting concentrations.
- Fluorescent Staining: A non-damaging fluorochrome stain binds to the DNA inside the sperm cells.
- Laser Excitation: Cells pass individually through a laser beam, exciting the fluorochrome.
- Measurement & Deflection: Because the X chromosome carries approximately 2.8% more DNA than the Y chromosome, it shines brighter. The cytometer detects this difference and applies an electrostatic charge to deflect the target cells.
- Enriched Sample Delivery: The sorted, enriched sample is collected and concentrated for artificial reproductive techniques (IUI or IVF).
Sperm Sort Flow Diagram
Deflection is determined by real-time measurement of the fluorescence peak area, reflecting total cellular DNA.The 5-Step Sorting Process
Laboratory Deployment Model
MicroSort is deployed as a licensed service within your existing laboratory environment. Equipment, training, and validation protocols are provided by the MicroSort technical team. Your embryology and lab staff remain in operational control.

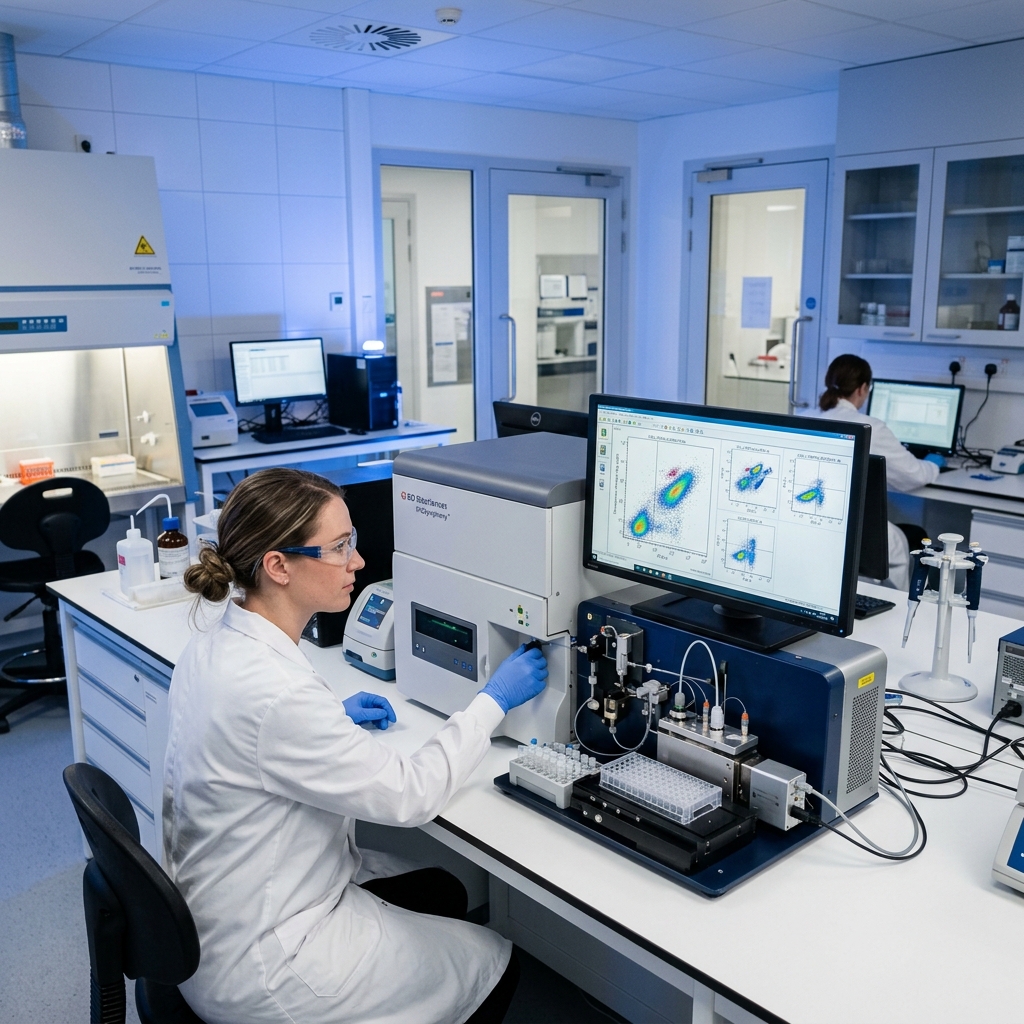

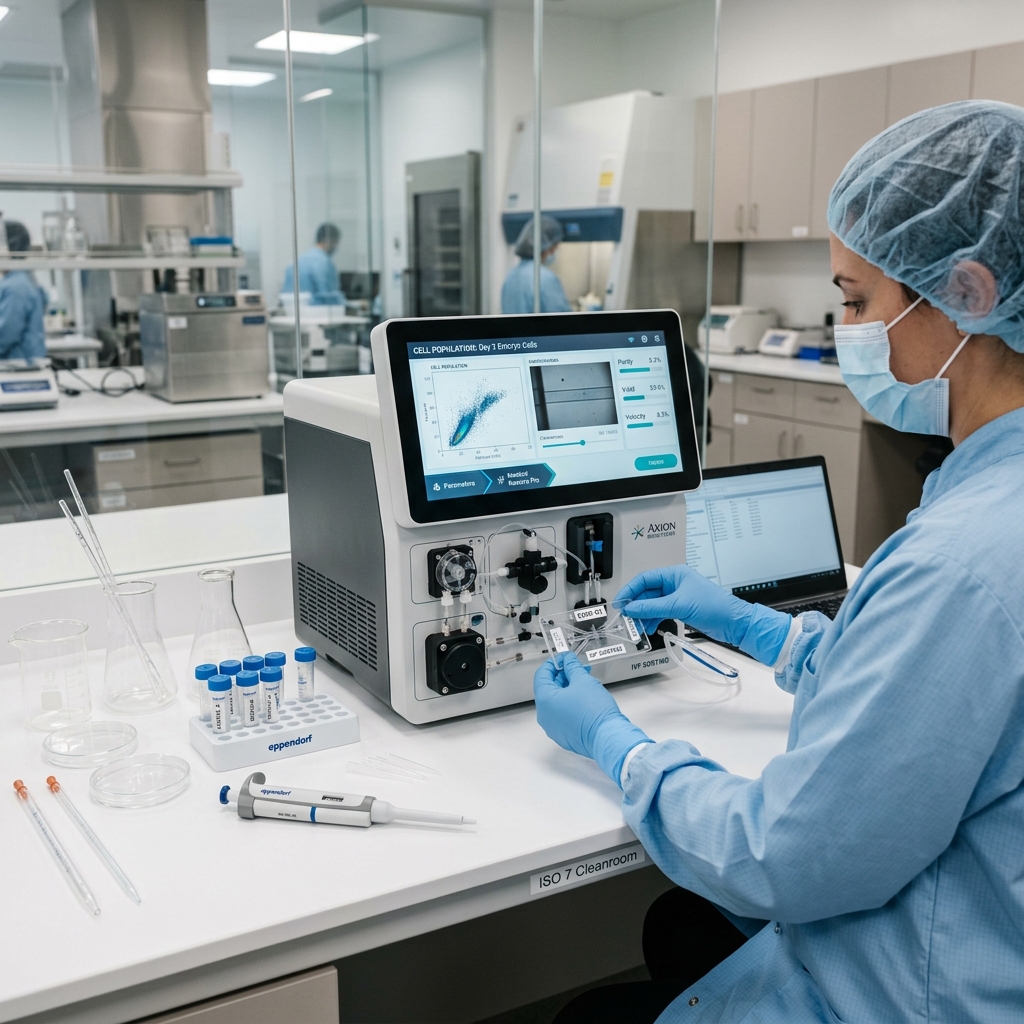

Equipment & Setup
- •Desktop cytometer installation
- •Minimal physical footprint (approx. 1.2m of bench space)
- •Standard 220V power & ethernet connectivity
- •Microfluidic controller and fluidics module integrations

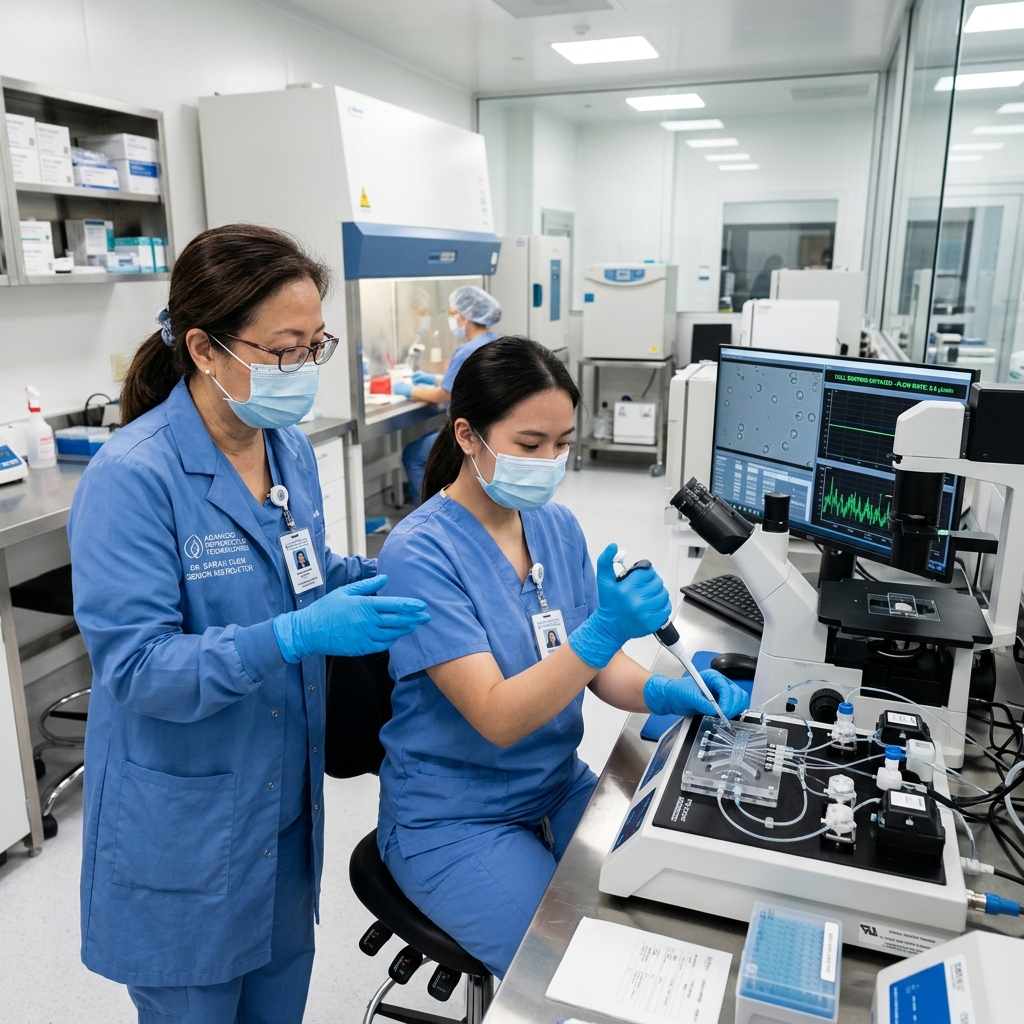

Training & Validation
- •4-week onboarding timeline for certified embryologists
- •Precision pipetting and cytometer alignment milestones
- •Formal competency sign-off by NewGen specialist team
- •Ongoing clinical support and refresher webinars
Ongoing Operations
- •Strict daily quality assurance calibration protocols
- •Semi-annual preventative hardware recalibration schedule
- •24/7 technical hotline availability for laboratory leads
- •Express dispatch for cartridge consumables and reagents
Workflow Integration
MicroSort fits into your existing IUI and IVF workflows without restructuring. The diagram below illustrates a typical patient journey at a partner clinic.
Patient intake
Screening and clinical eligibility assessment.
Sample collection
Semen sample collection and initial liquefaction.
MicroSort process
Fluorescent staining, laser measurement, and deflection sort.
ART procedure
IUI insemination or IVF/ICSI fertilization.
Follow-up
Post-procedure care and clinical monitoring.
Compatibility with PGT
MicroSort is frequently combined with Preimplantation Genetic Testing (PGT-A or PGT-M) to provide an additional confirmation layer. The combination is the most common configuration for family-balancing patients seeking high-certainty outcomes and for couples reducing the risk of X-linked conditions.
Dual-Layer Verification
Regulatory & Jurisdiction Notes
Sperm-sorting and sex-selection technologies are regulated differently across jurisdictions. The MicroSort team provides jurisdiction-specific implementation guidance during the partnership process. Partnering clinics are responsible for ensuring compliance with all applicable local regulations.
